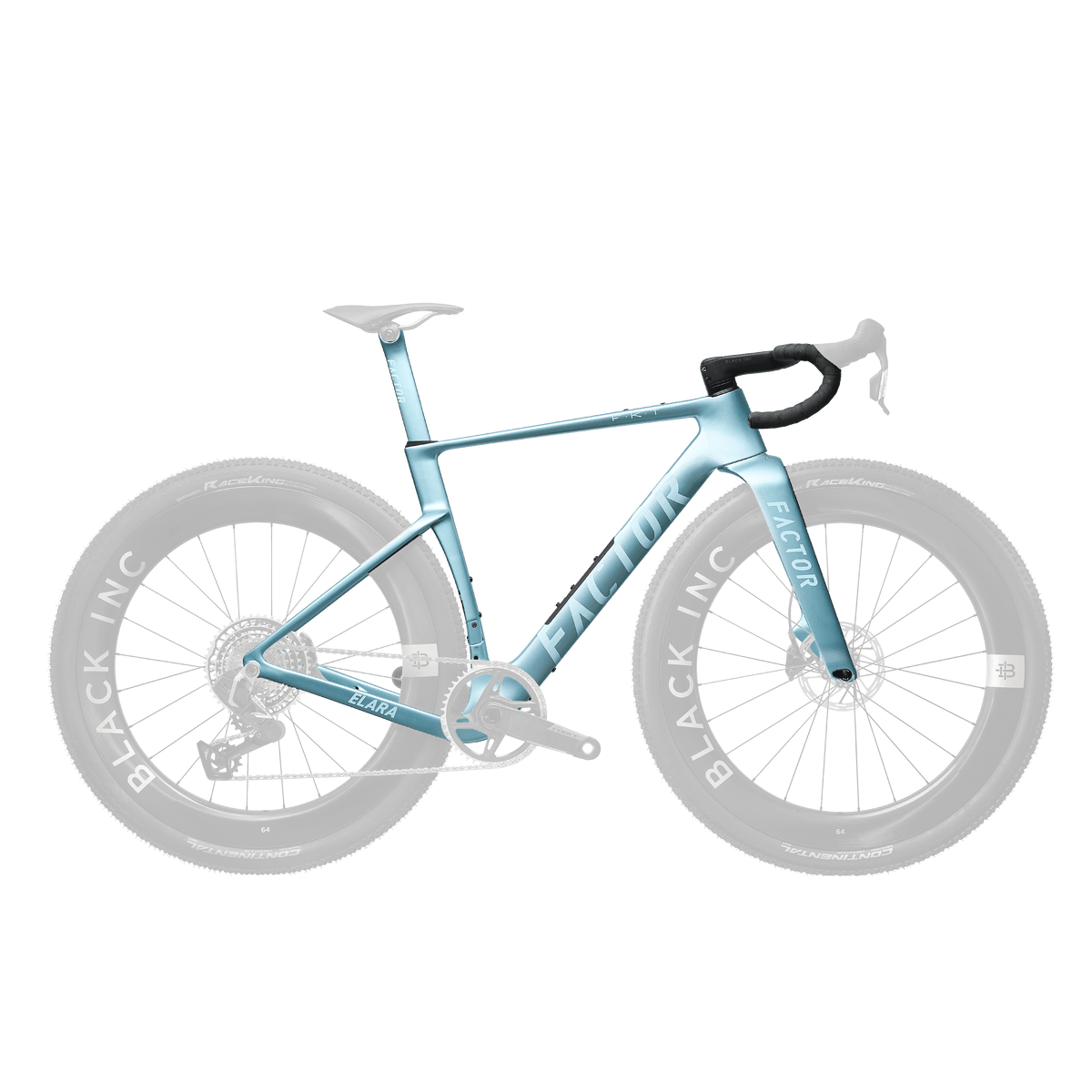

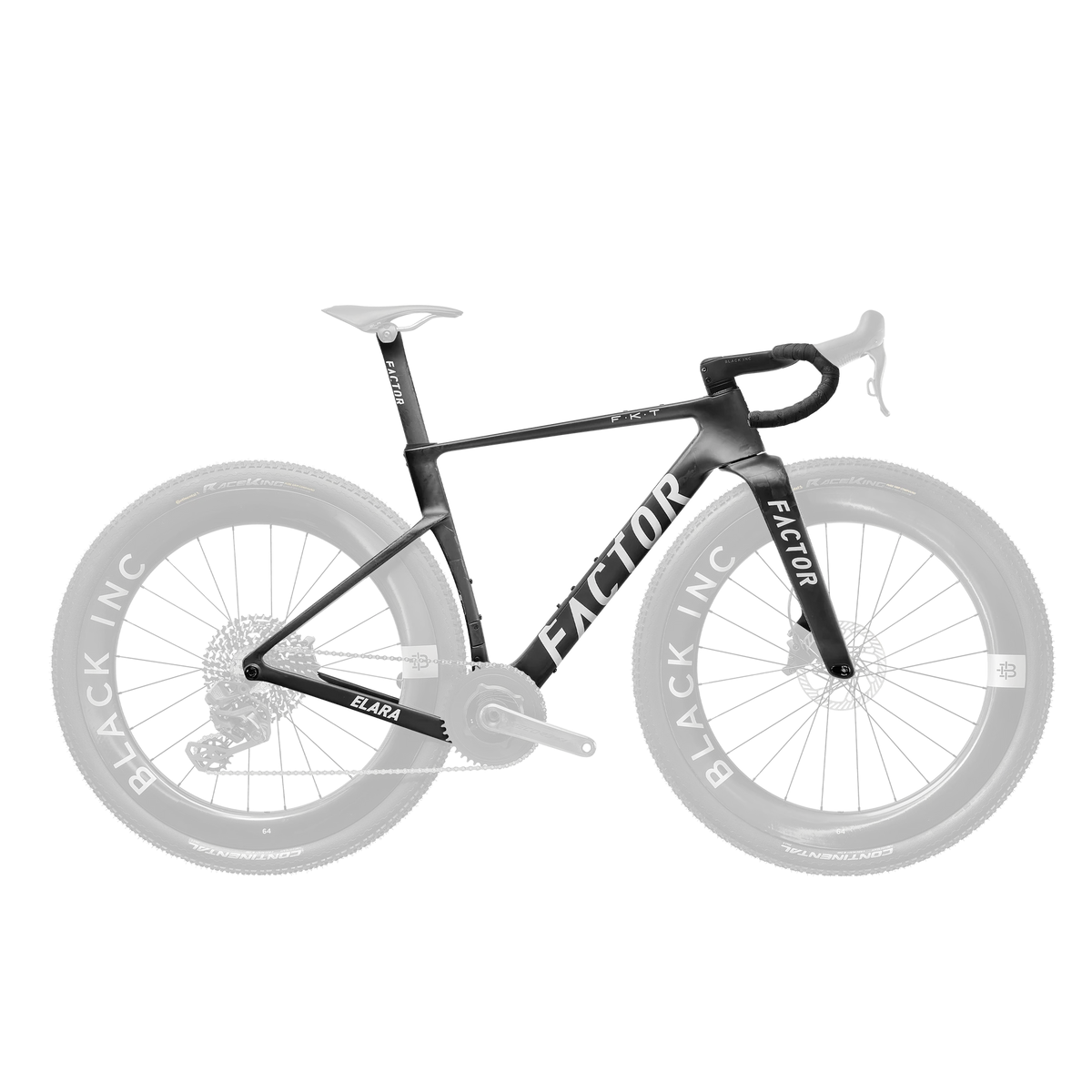

ELARA - Frameset
ELARA - Frameset
✓ Available ONLINE ready to pickup or ship in 1-3 days
Start with a frame that's already proven at the top level of gravel racing. The ELARA's monocoque carbon construction keeps weight down around 1,100g for a painted Size M, while its aero-derived fork cuts drag without giving up the stability you need when the surface turns rough. This is the same frame raced at the UCI Gravel World Series and Gravel Earth Series, now available as a standalone platform for riders who want to spec every component themselves.
Where most gravel frames treat wide tyres as a necessary compromise, the ELARA is designed around them: 57mm of clearance means lower rolling resistance and fewer flats without sacrificing the sharp, road-bike handling this frame is known for. A UDH-compatible derailleur hanger and support for both 1× and 2× electronic setups across SRAM, Shimano and Campagnolo mean the drivetrain choice is entirely yours, with no compromises baked in by the frame itself.
Frameset includes:
- Frame
- ELARA Wide Stance Fork
- Seatpost
- Black Inc Integrated Barstem (cockpit)
- CeramicSpeed T47A Bottom Bracket
- Downtube Storage Bag
| Frame | Toray®, Nippon Graphite® Pan-Based Fiber |
| Fork | ELARA Wide Stance Fork |
| Seatpost | 0 and 20mm setback available |
| Barstem | Black Inc Integrated Barstem Reach 80mm, drop 114mm. Multiple stem lengths and bar widths available |
| Headset | 1.5″ bearings |
| Head Tube Diameter | 1.5″ upper and lower |
| Saddle Rail Clamps | 7x7 and 7x9 |
| Bottom Bracket | CeramicSpeed T47A Aluminium cups / CeramicSpeed bearings available for DUB and 24mm. |
| Cable Routing | Internal |
| Compatible Components | Electronic |
| Brake type | Disc |
| Max Rotor Size | 160mm front & rear |
| Max Chainring | 52-tooth |
| Front Axle | 12 x 100mm thru-axle |
| Rear Axle | 12 x 142mm thru-axle |
| Wheelset | Black Inc 64 |
| Wheel Size | 700c |
| Max Tire Clearance | 57mm measured |
| Included Accessories | Downtube storage bag |
| Manufacturer Warranty | Limited Lifetime Warranty |
