Factor Bikes

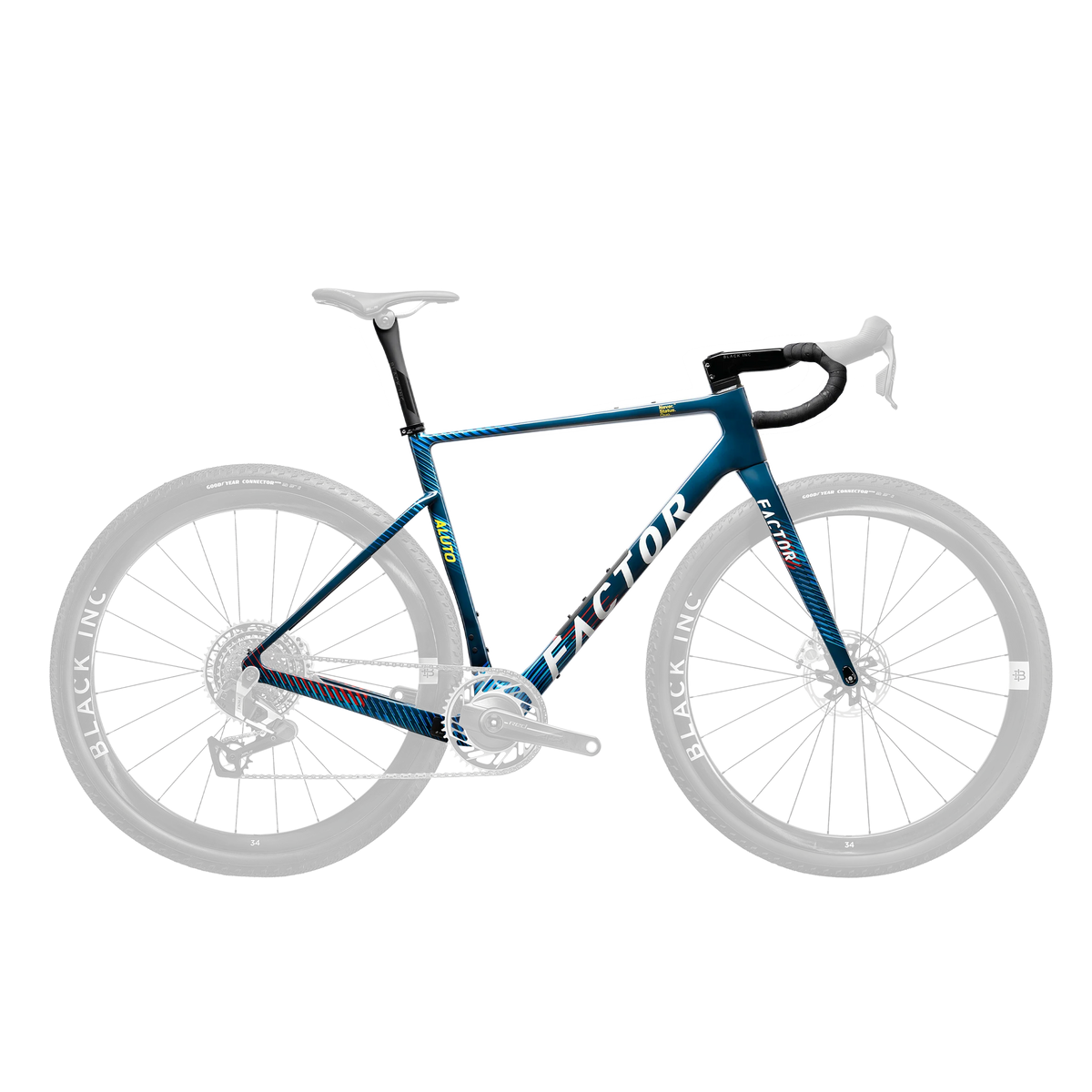

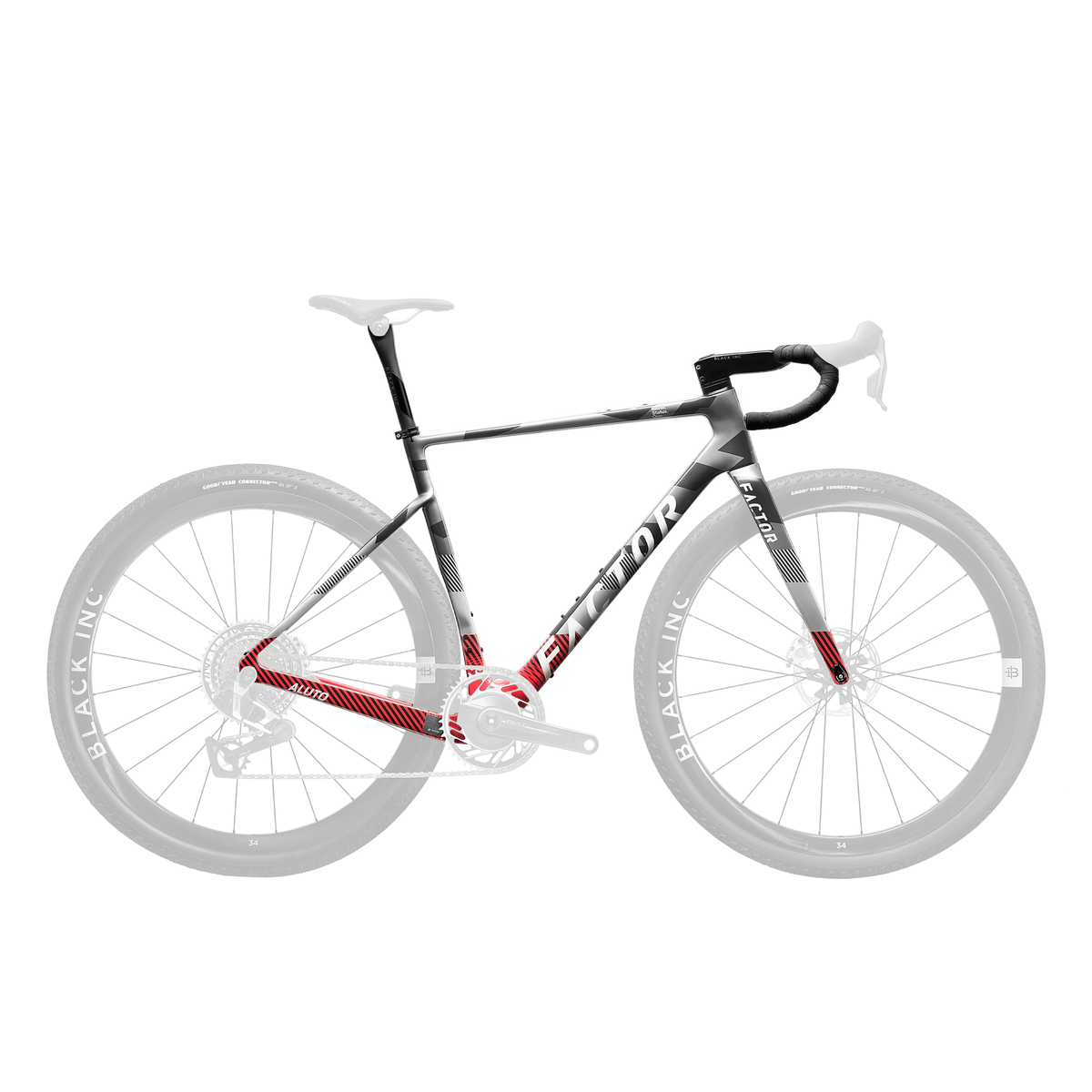

Factor ALUTO - Frameset
Factor ALUTO - Frameset
Regular price
$6,699.00 AUD
Regular price
Sale price
$6,699.00 AUD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Factor ALUTO Standard Package is the frameset-only way into Factor's race-bred carbon gravel platform – built for riders who want to spec their own drivetrain and wheels around a frame that's sharp, technically focused and built to go long. It carries the same carbon frame and geometry as every ALUTO build: a slightly steeper head tube angle, short chainstays and a lower bottom bracket for stability, room for 52mm front / 47mm rear tyres, and down-tube in-frame storage for race day or self-supported adventures. Available in Quattro Grey and Raptor Blue.
Frameset includes:
- Factor ALUTO carbon frame
- Factor ALUTO carbon fork
- Carbon seatpost (0 and 25mm setback available)
- Black Inc integrated barstem
Specs
| Frame | Toray®, Nippon Graphite® Pan-Based Fiber |
| Fork | Factor ALUTO carbon |
| Seatpost | 0 and 25mm setback available |
| Barstem | Black Inc Integrated Barstem Reach 75mm, drop 116mm. Multiple stem lengths and bar widths available |
| Headset | 1.5″ bearings |
| Head Tube Diameter | 1.5″ upper and lower |
| Saddle Rail Clamps | 7x7 and 7x9 |
| Bottom Bracket | Standard Package: n/a SRAM DUB T47a / FSA (SH24) |
| Cable Routing | Internal |
| Compatible Components | Electronic |
| Brake type | Disc |
| Max Rotor Size | 160mm front & rear |
| Max Chainring | 54-tooth |
| Front Axle | 12 x 100mm thru-axle |
| Rear Axle | 12 x 142mm thru-axle |
| Wheelset | Black Inc THIRTY FOUR |
| Wheel Size | 700c |
| Max Tire Clearance | 47mm Measured |
| Manufacturer Warranty | Limited Lifetime Warranty |
Geometry
| Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| A Stack | 530 | 547 | 565 | 585 | 605 | 625 |
| B Reach | 377 | 385 | 393 | 402 | 412 | 422 |
| C Head Tube Angle | 71.5° | 71.9° | 72° | 72° | 72° | 73° |
| D BB Drop | 80 | 80 | 78 | 78 | 78 | 78 |
| E Trail | 64.4 | 61.8 | 61.2 | 61.2 | 61.2 | 61.2 |
| F Fork Rake/Offset | 50 | 50 | 50 | 50 | 50 | 50 |
| G Chainstay Length | 420 | 420 | 420 | 423 | 425 | 425 |
| H Wheelbase | 992.6 | 1002.5 | 1016.5 | 1035 | 1053 | 1070 |
| I Bike Standover Height | 749.5 | 770 | 793 | 812 | 833 | 850.5 |
| J Seat Tube Length | 455 | 480 | 505 | 525 | 549 | 565 |
| K Seat Tube Angle | 74.5° | 74° | 74° | 73.5° | 73.5° | 73.5° |
*All dimensions in mm.
