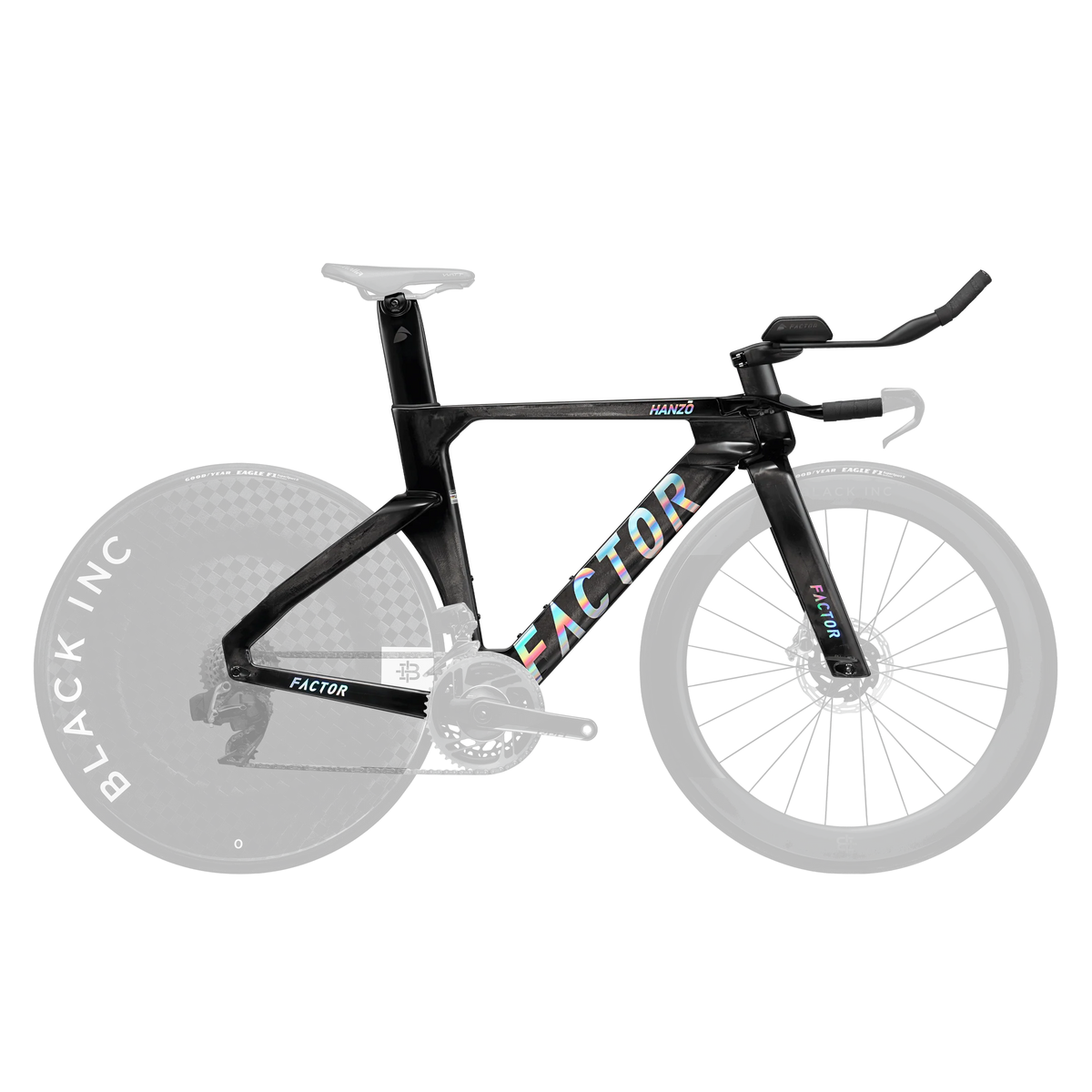

Factor HANZŌ – Frameset

$10,599.00 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Size S M L XL

Seatpost 0mm 27mm

The Factor HANZŌ Premium Package is the frameset-only way into one of the fastest UCI-compliant time trial platforms in the world – engineered to the limit of current design regulations, ready for you to build up with your own groupset and wheels. It carries the same carbon frame and single-piece fork with external steerer and mono-riser design as every HANZŌ build, along with the integrated NACA profile 3:1 seatpost and internal electrical routing with a down-tube Di2 junction box. Finished in Chrome, with the seatpost available in 0mm or 27mm setback to dial in position without compromising the aero profile.

Frameset includes:

Factor HANZŌ carbon frame
Single-piece carbon fork, external steerer, mono-riser design
Integrated NACA profile 3:1 seatpost, Di2-battery compatible (0mm or 27mm setback)
Integrated down-tube Di2 junction box

Specs

Frame	Carbon
Fork	Carbon, single-piece fork with external steerer and mono-riser design
Seatpost	Integrated NACA profile 3:1 seatpost, Di2-battery compatible (0mm or 27mm setback)
Bottom Bracket	BBRight
Cable Routing	Internal electrical, integrated Di2 junction box in down tube
Brake Type	Flat mount disc
Max Rotor Size	160mm
Front Axle	12 x 100mm thru-axle
Rear Axle	12 x 142mm thru-axle
Max Tire Clearance	700 x 28c
UCI Compliance	UCI-compliant time trial geometry

Geometry

	S	M	L	XL
A Stack	501	516	541	566
B Reach	390	405	419	440
C Head Tube Angle	72°	72.5°	72.5°	72.5°
D BB Drop	72	72	72	72
E Trail	64	60	60	60
F Fork Rake/Offset	45	45	45	45
G Chainstay Length	405	405	405	405
H Wheelbase	975	991	1012	1041
I Bike Standover Height	n/a	n/a	n/a	n/a
J Seat Tube Length	491	510	535	560
K Seat Tube Angle	78°	78°	78°	78°
Min Pad Stack	554	572	597	622
Min Pad Reach at Min Pad Stack	387	398	412	433
Max Pad Reach at Min Pad Stack	585	596	611	632
Max Pad Stack	652	671	695	719
Min Pad Reach at Max Pad Stack	356	366	381	402
Max Pad Reach at Max Pad Stack	556	567	582	604

* Pad measurements are taken from the center of pad.
