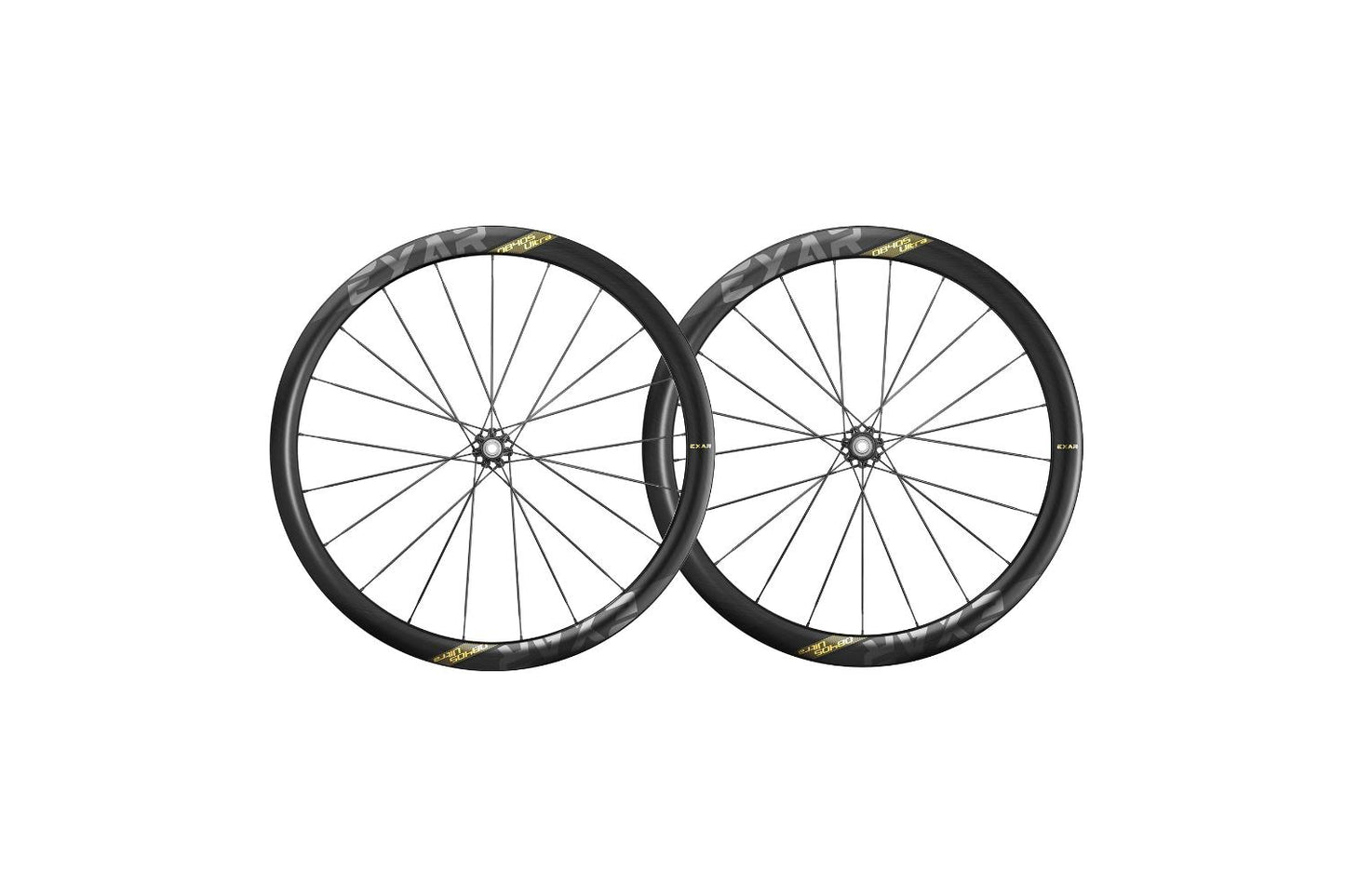

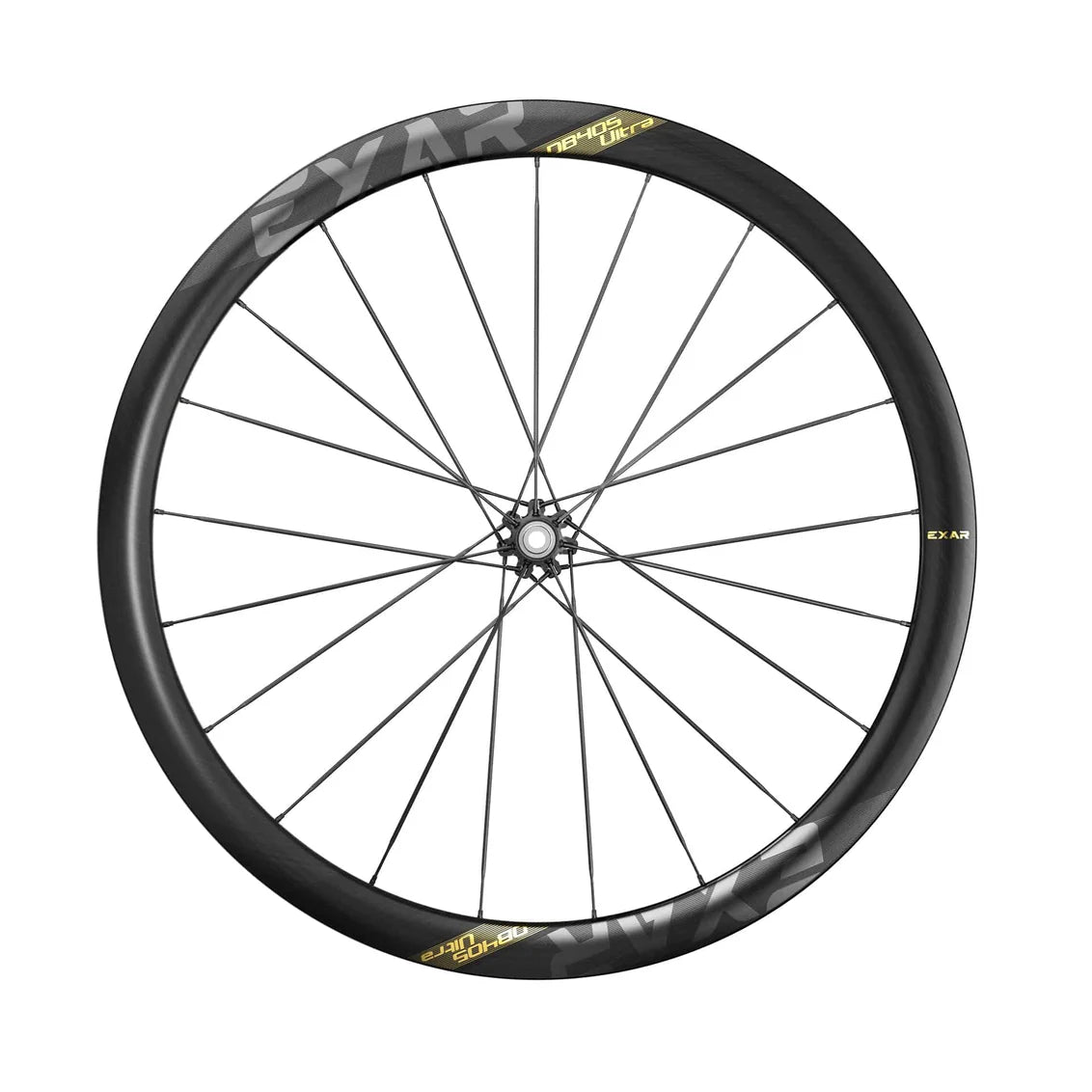

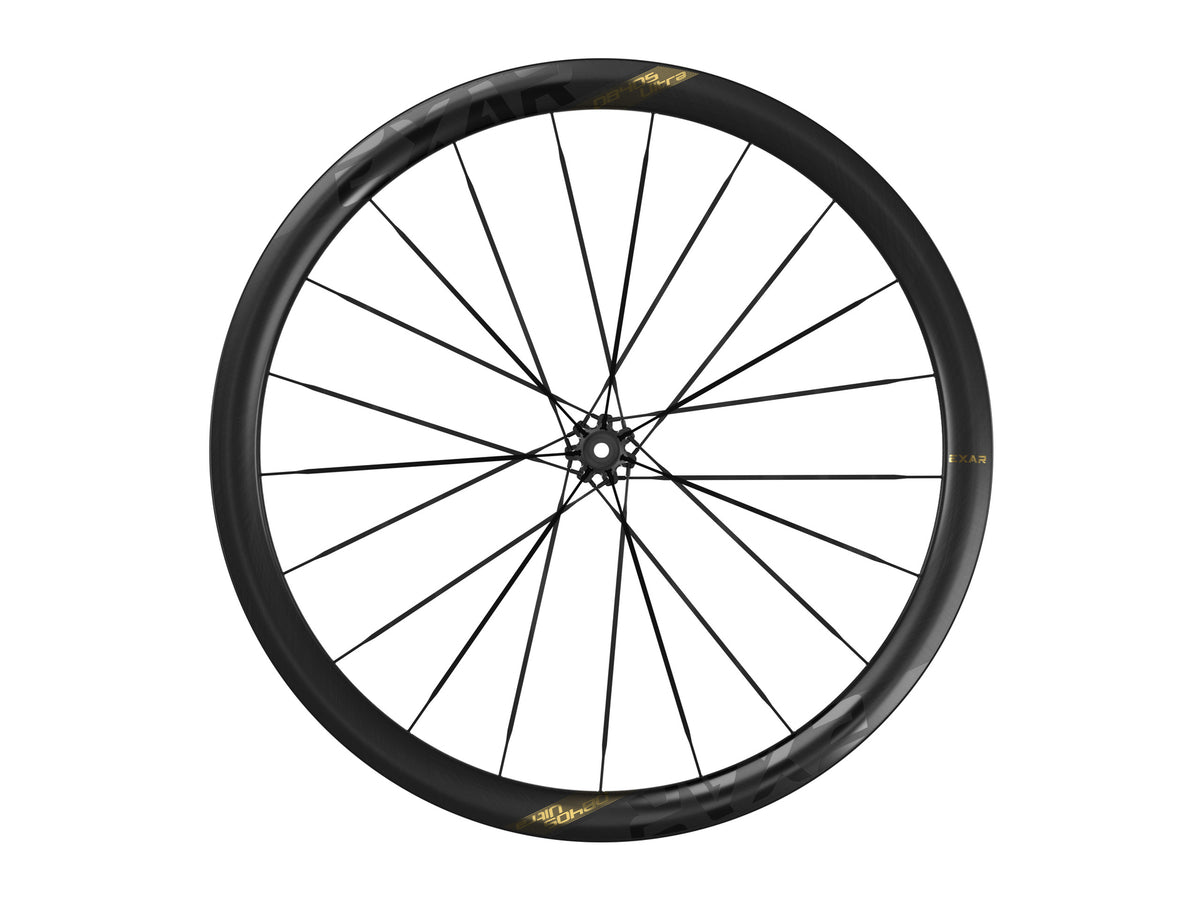

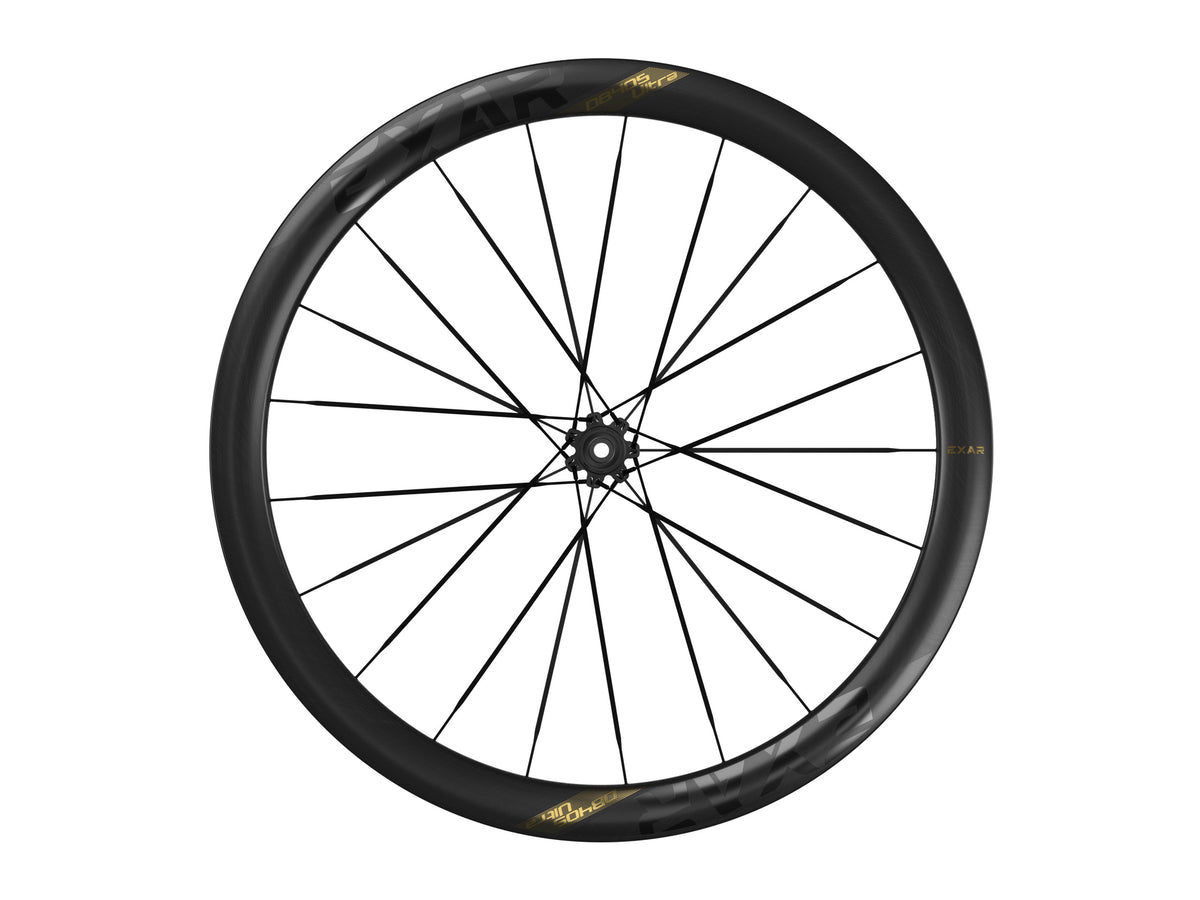

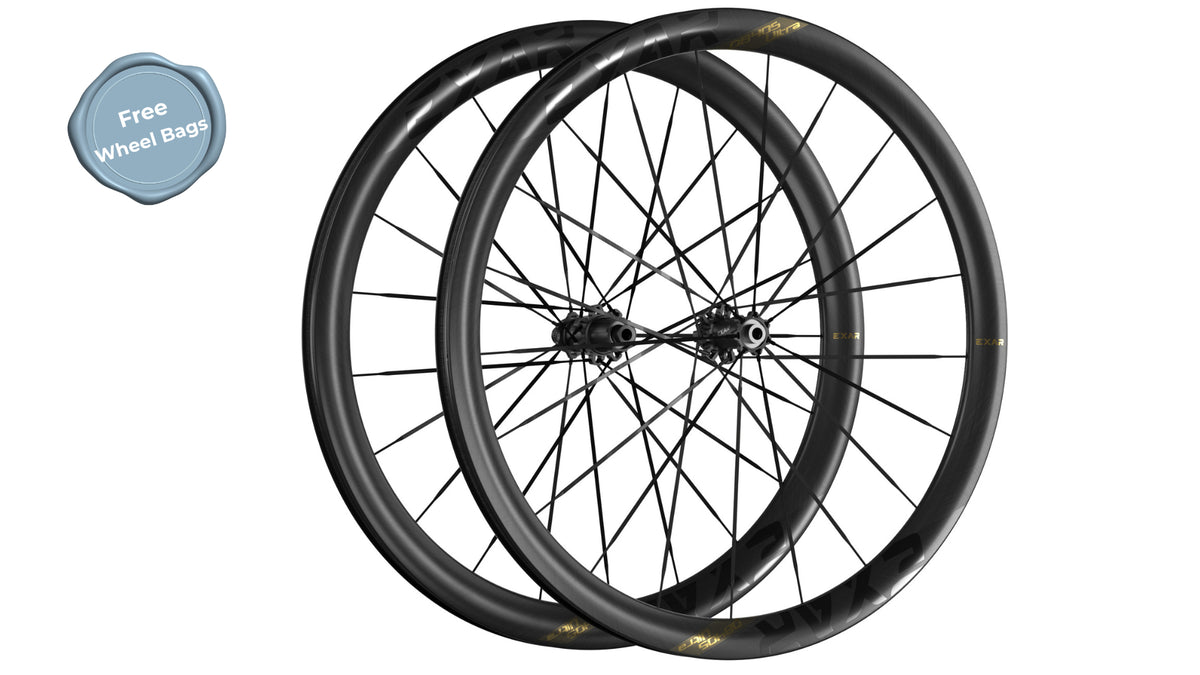

Magene EXAR DB405 Ultra Wheelset HG - 2025

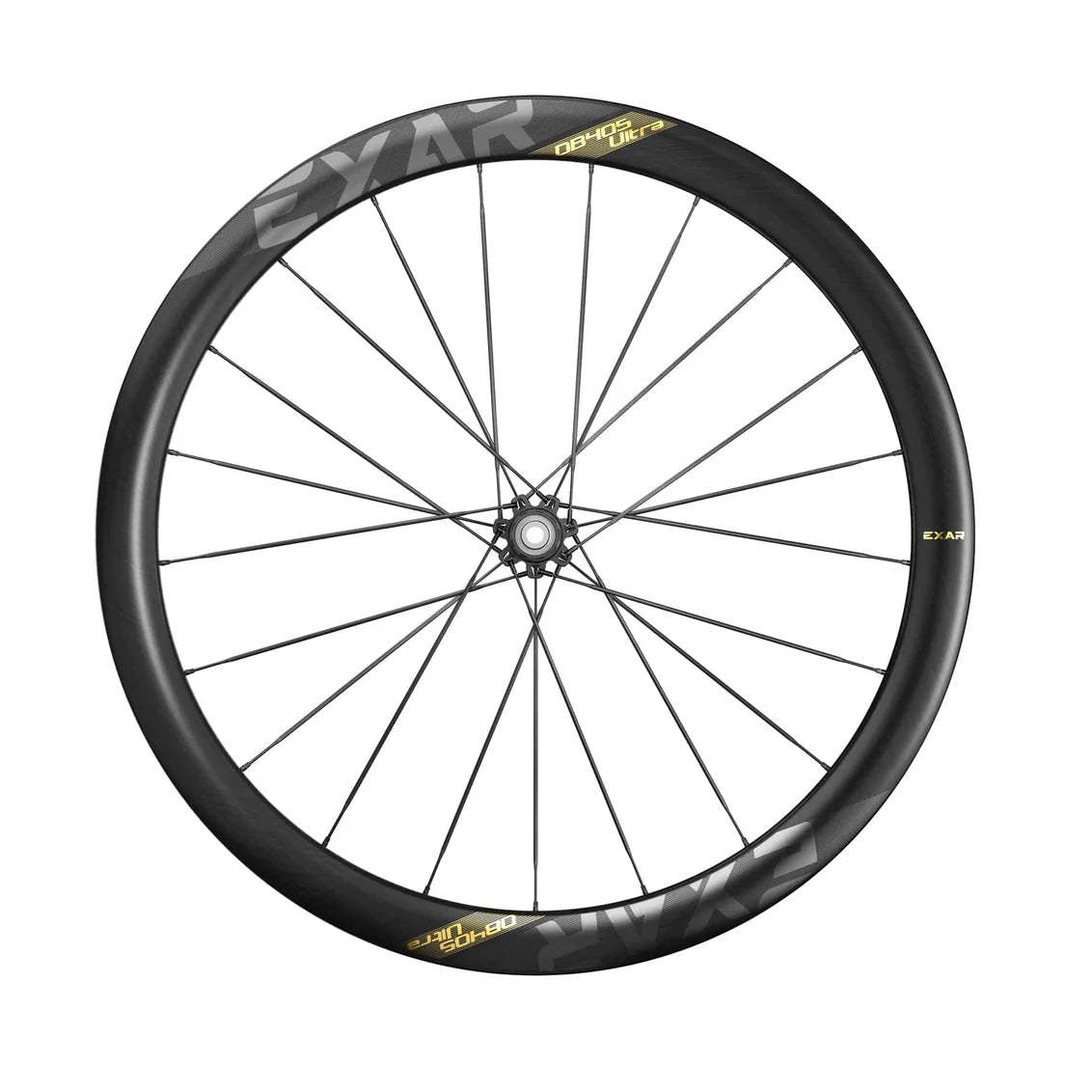

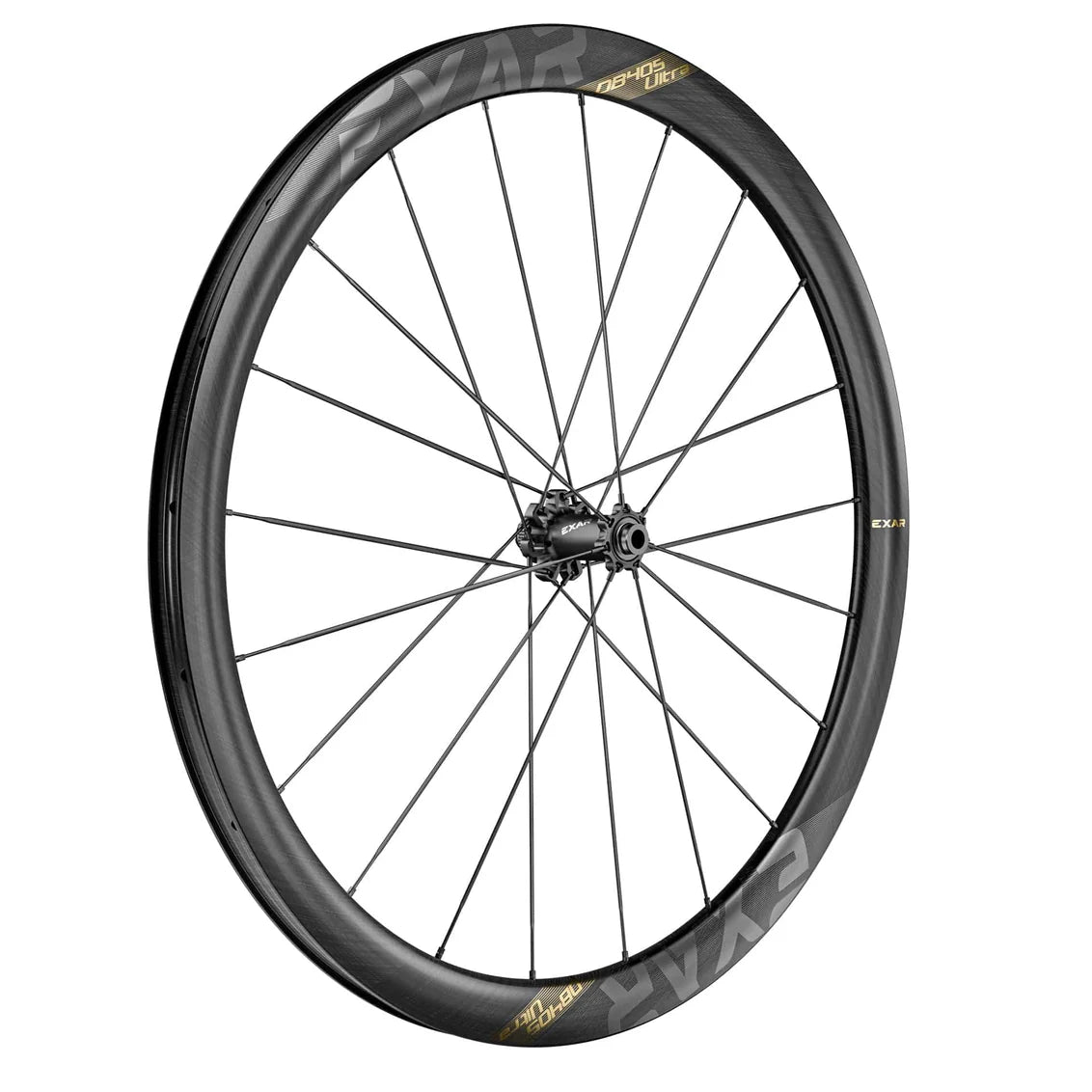

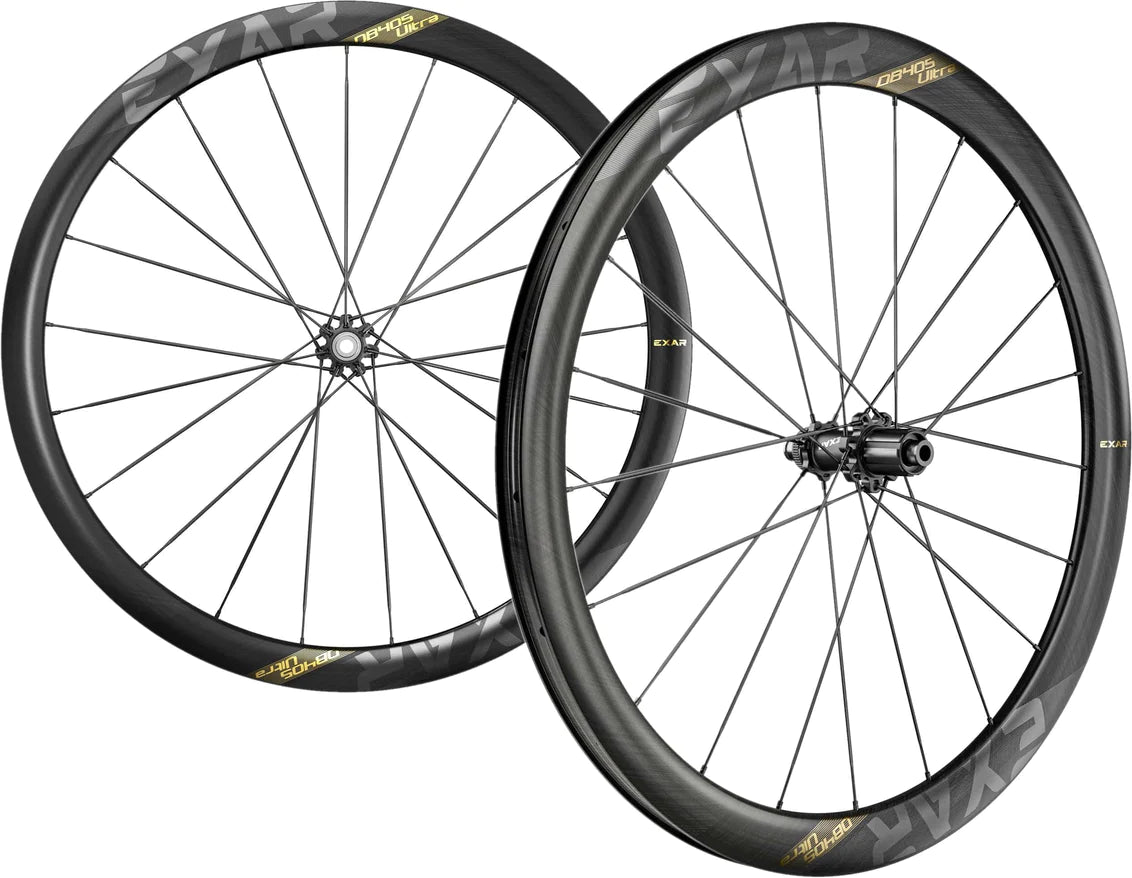

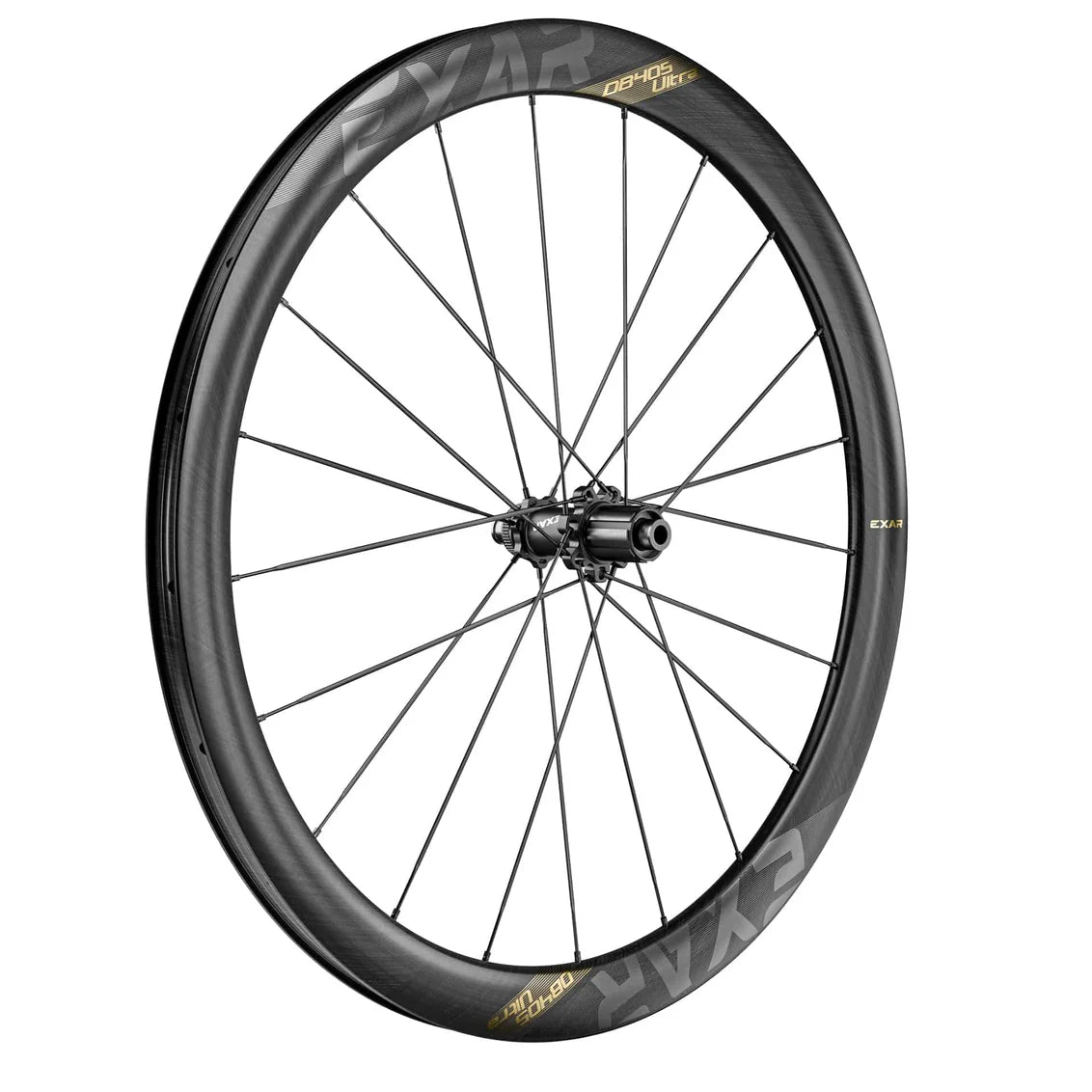

The EXAR Ultra is Magene's top-tier disc road wheelset, built from HI-MOD T800 carbon with full carbon spokes and ceramic bearings. It uses a staggered profile: a shallower 40 mm front for easy handling in crosswinds, and a deeper 45 mm rear to hold speed.

The 30 mm wide rim (23 mm internal) is made for 28-32c tyres. It gives a flat, aero tyre-to-rim transition and a comfier ride.

Specs

• Rim depth: 40 mm front / 45 mm rear
• Weight: 1290 g (±3%)
• 30 mm external / 23 mm internal width, tubeless ready
• HI-MOD T800 carbon spokes (2.8 g each), 2:1 lacing
• Ceramic bearings, 36T ratchet (54T upgrade available)
• 100 / 142 mm thru-axle, disc brake
• Shimano HG freehub (XDR and N3W bodies sold separately)
• 110 kg max system weight
